TYPICAL APPLICATIONS:
Capacitors
modules are intended for use in ventilation and
extraction
systems for regulation of three motor speeds with capacitor switching.
PRINCIPLE OF OPERATION:
By connecting the motor to a change-over switch, one
necting the motor to a change-over switch, one
necting the motor to a change-over switch, one
capacitor
circuit to other is activated, producing different combinations of
capacitance and
reactance
that result in three output levels.
GENERAL
TECHNICAL DATA
Windings:
Non inductive type
Dielectric: Polypropylene film
Plates:
Aluminium
and Zn layer deposited by evaporation
under vacuum.
Case:
Plastic materials self-extinguishing grade V0
according to UL 94 standard.
Resin:
Non polluting filling compound made of vegetable oil (non PCB) improving
the protection
of the winding and the functioning of the capacitor.
Connector:
Polyamide
UL 94 - V0 or Polypropylene UL 94 V0
Polyamide
UL 94 - V0 or Polypropylene UL 94 V0
Polyamide
UL 94 - V0 or Polypropylene UL 94 V0
Discharge resistor:
0,56 MW / 0,5 W - 2 pcs or 3 pcs
Internal wires:
stiff wires, copper - 0.75 mm2
ELECTRICAL
CHARACTERISTICS
|
Capacitance range
|
C1=2mF
- 4mF;
C2=1mF
- 5mF;
C3=4mF;
Cm=1,5mF
- 2mF
|
|
Capacitance tolerance
|
±
5%; ±
10%
|
|
Rated voltage
|
for C1, C2, and C3: UR=
250 VAC DB HPFNT
Cm: UR=
400 VAC DB HPFNT
|
|
Frequency
|
50 Hz
|
|
Test voltage
|
2UR for 2 s at 250C
between terminals
|
|
Climatic category
|
-25/085/21 – HPF – DIN
40040
|
|
Expected life
|
10000 h NT
(Cl.B)
|
|
Reference standard
|
EN60252 – for motor run
capacitors
|
DIMENSIONS AND
CAPACITANCES
VALUES
|
Code
|
Capacitance
(
mF
)
|
Dimension
|
|
250
VDB HPFNT
|
400
VDB HPFNT
|
H
± 0,5
|
|
C1
|
C2
|
C3
|
Cm
|
mm
|
|
61726730027
|
2
|
1
|
|
1,5
|
80
|
|
61726730045
|
2
|
1
|
|
2
|
80
|
|
61726730063
|
3
|
2
|
|
2
|
80
|
|
61726730081
|
2,5
|
2,5
|
4
|
2
|
111
|
|
61726730107
|
3,5
|
2,5
|
|
2
|
80
|
|
61726730125
|
4
|
1,5
|
|
2
|
80
|
|
61726730143
|
3
|
5
|
|
2
|
80
|
|
61726730161
|
4
|
4
|
|
2
|
80
|
Other capacitance's values on request

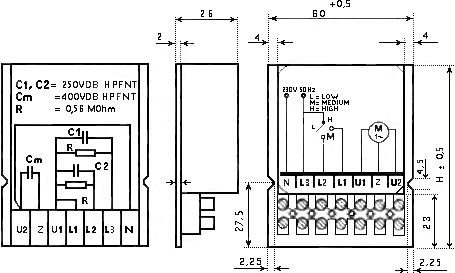

CONSTRUCTION AND DIMENSIONS
Internal connection diagram
External connection diagram |
