TYPICAL
APPLICATIONS:
Interference
suppression and across-the-line applications. Suitable for use in situations
where failure of the capacitor
would not lead to danger of electric shock.
GENERAL
TECHNICAL DATA:
Dielectric:
Polypropylene film
Plates:
Metal layer deposited by evaporation under vacuum
Protection:
Plastic case flame retardant and epoxy resin - according to UL 94 V1
Climatic
category: 40/100/56 IEC 60068-1
Related
documents: EN 132400

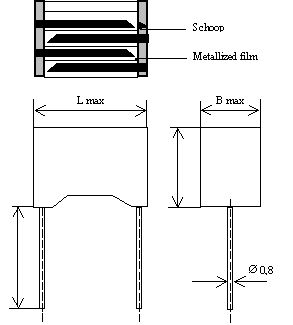

SCHEMATIC CROSS SECTION
ELECTRICAL
CHARACTERISTICS:
Capacitance range:
CR = 0,022 mF to 2,2 mF
Capacitance tolerance:
±10% (K);
±20% (M) at 1 kHz
Rated voltage: UR = 275 VAC
Test voltage: between terminals 1500 VAC for 1 s +2200 VDC
for 1 s at +25°C
Dissipation factor:
tgd £ 20 x 10-4
at 25 °C ± 5 °C and 1 kHz
Insulation resistance at 25°C
±5°C
and 100VDC - 1 min:
³ 1.105 MW
for C £ 0,33 mF
³ 30 000 s for C > 0,33 mF
Max pulse rise time
dv/dt (V/ms):
100 V/ms at 390 VDC
DIMENSIONS
( mm ):
|
Rated
capacitance µF |
max
B |
max
H |
max
L |
P
± 0,4 |
| 0,022 |
5,0 |
11,0 |
18,0 |
15,0 |
| 0,047 |
5,0 |
11,0 |
18,0 |
15,0 |
| 0,068 |
5,0 |
11,0 |
18,0 |
15,0 |
| 0,100 |
6,0 |
12,0 |
18,0 |
15,0 |
| 0,220 |
6,0 |
15,0 |
26,5 |
22,5 |
| 0,330 |
7,0 |
16,0 |
26,5 |
22,5 |
| 0,470 |
9,0 |
17,0 |
32,0 |
27,5 |
| 0,680 |
10,0 |
20,0 |
32,0 |
27,5 |
| 1,000 |
11,0 |
20,0 |
32,0 |
27,5 |
| 1,500 |
15,0 |
24,5 |
32,0 |
27,5 |
| 2,200 |
13,0 |
24,0 |
41,5 |
37,5 |
| 3,300 |
16,0 |
28,5 |
41,5 |
37,5 |
| 4,700 |
19,0 |
32,0 |
41,5 |
37,5 |
TEST
METHOD AND PERFORMANCE:
Damp
heat, steady state:
Performance:
Test
conditions:
Dielectric strength: no dielectric breakdown or
Temperature:
+ 40oC ± 2oC flashover at 66%of 4,3 x UR(DC)/1 min
Relative
humidity (RH): 93% ±
2% Capacitance change: (DC/C):
£
± 5%
Test
duration: 56
days
Insulation resistance: ³
50% of initial limit
Endurance:
Resistance to soldering heat:
Test
conditions:
Test conditions:
Temperature:
+ 100oC ± 2oC Solder bath temperature: + 260oC ± 5oC
Test
duration: 1000
h Dipping time (with heat screen): 10 s ± 1 s
Voltage
applied: 1,25 x UR + 1000 UAC 0,1 s/h
Marking:
Manufacturer's
logo, series, capacitance, tolerance rated voltage, capacitor class, dielectric
code, climatic category.
|
